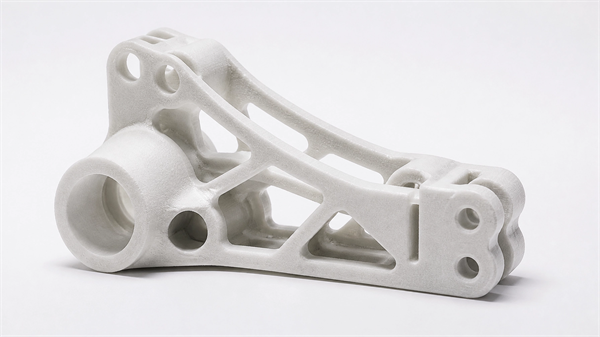

7 Mistakes You’re Making with DfAM (and How to Fix Them)

Practical DfAM guidelines for mechanical design engineers using MJF and SLS for plastic parts.

Design for Additive Manufacturing (DfAM) is often touted as a "limitless" frontier. For mechanical design engineers transitioning from traditional subtractive manufacturing or injection molding, the freedom to create complex lattices and internal channels feels like a superpower. However, industrial 3D printing: specifically powder bed fusion technologies like Multi Jet Fusion (MJF) and Selective Laser Sintering (SLS): comes with its own set of rigid physical constraints.

At SICAM, we see hundreds of CAD files every week. Many of them are brilliant, but many also fall into the same recurring traps that lead to warped parts, trapped powder, or structural failures. If you want to move from "it looks good on the screen" to "it works on the factory floor," you need to avoid these seven common DfAM mistakes.

1. The "Skinny" Problem: Ignoring Minimum Wall Thickness

One of the most frequent errors we encounter is designing walls that are simply too thin for the process. While MJF and SLS are incredibly precise, they still rely on melting plastic powder. If a wall is too thin, it won't have enough structural integrity to survive the cooling process or the post-processing stage (like bead blasting).

The Mistake: Designing walls below 0.8mm for non-structural features or below 1.5mm for structural components.
The Fix: For most PA12 (Nylon) applications, aim for a minimum wall thickness of 1.0mm to 1.5mm. If the part is large or needs to withstand significant stress, bump that up to 2.5mm or 3.0mm. Remember, thickness is your friend when it comes to heat dissipation during the build. Uniform wall thickness is the gold standard; abrupt changes from thick to thin can cause "sink" marks, much like in injection molding.

2. The Sand Trap: Forgetting Powder Escape Holes

Unlike SLA or FFF, powder bed fusion technologies don't need "supports" in the traditional sense because the surrounding unsintered powder acts as the support. However, that powder has to go somewhere. If you design a hollow cavity or a "black box" volume without an exit, you’ll end up with a solid, heavy part filled with trapped, semi-fused powder.

The Mistake: Designing enclosed volumes without escape ports.
The Fix: Always include at least two escape holes for any hollow geometry. Why two? One for the powder to exit and one for air to enter, facilitating easier cleaning. For MJF, we recommend a minimum hole diameter of 4mm to 6mm. For SLS, 6mm to 10mm is safer to ensure the powder flows out freely during depowdering. Check out our Additive Manufacturing guide for more on geometry constraints.

3. The "Traditionalist" Mindset: Over-Engineering and Assembly Thinking

Many engineers design for 3D printing as if they were still designing for a CNC mill. They create five separate parts that need to be bolted together, each with its own fasteners and tolerances. This completely ignores the greatest benefit of DfAM: Part Consolidation.

The Mistake: Designing multiple interlocking components that could have been a single, complex part.
The Fix: Look at your assembly and ask, "Can these parts be printed as one?" 3D printing allows you to integrate hinges, springs, and fluid channels into a single piece. Not only does this reduce your bill of materials (BOM), but it also eliminates the "tolerance stack-up" issues that plague complex assemblies. Don't be afraid of complexity: in AM, complexity is free.

4. The Warp Factor: Large Flat Surfaces

In the world of MJF and SLS, heat management is everything. As the laser (SLS) or lamps (MJF) fuse the powder, significant thermal energy is injected into the bed. Large, flat, thin plates are notorious for absorbing this heat unevenly, leading to warping or "potato-chipping" as the part cools.

The Mistake: Designing large, flat areas (especially in the XY plane) without reinforcement.
The Fix: If you must have a large flat surface, add a subtle crown or curvature to it. If curvature isn't an option, use a honeycomb or ribbing structure on the underside to increase stiffness without adding massive amounts of material. This breaks up the surface tension and helps the part stay flat during the cooling cycle.

5. Stress Risers: The Danger of Sharp Internal Corners

This is a carryover from traditional design, but it’s even more critical in 3D printing. Sharp 90-degree internal corners are magnets for stress concentration. In a powder bed, these corners can also trap heat, leading to localized over-fusion or cracking.

The Mistake: Using sharp internal angles in load-bearing regions.
The Fix: Add fillets. A radius as small as 0.5mm or 1.0mm can drastically improve the strength of your part and make it much more resistant to impact. Fillets also help with the flow of the powder and the consistency of the thermal profile across the part. For more on how these details affect the final look, read our guide on surface finish specs.

6. Orientation Blindness: Neglecting Z-Strength and Surface Finish

While MJF is known for having nearly isotropic mechanical properties (meaning it’s almost as strong in the Z-axis as it is in the XY plane), it isn't perfectly isotropic. Furthermore, the orientation of your part in the build chamber determines which surfaces will have the best finish and which will show "stepping" or "stair-casing."

The Mistake: Failing to communicate critical faces or load directions to your manufacturing partner.
The Fix: When you request a quote, specify which surfaces are "cosmetic" and which are "functional." Generally, features oriented in the XY plane will have the highest resolution and strength. If you have a thin, tall feature, it is more likely to warp or break if printed vertically. We often recommend orienting critical features at a slight angle to minimize stair-casing and distribute thermal loads.

7. Tolerance Tensions: Expecting "Milled" Precision

One of the most common friction points between designers and AM shops is the expectation of tolerances. If you put a $\pm 0.01mm$ tolerance on a 3D printed nylon part, you are setting yourself up for disappointment. Plastic 3D printing is a thermal process; material expands and contracts.

The Mistake: Applying CNC-level tolerances to 3D printed polymer parts without post-machining.
The Fix: Standard industrial 3D printing tolerances for MJF and SLS are typically around $\pm 0.3%$ (with a lower limit of $\pm 0.2mm$). If you need a bearing fit or a high-precision threaded hole, the best approach is to design the part with extra "meat" (stock) and then secondary machine that specific feature. At SICAM, we can help you determine where to add machining allowances to ensure your final assembly fits perfectly.

Final Thoughts: Designing for Success

Successful DfAM isn't about following a set of rigid rules; it’s about understanding the physics of the process. By accounting for heat, powder removal, and the inherent strengths of additive manufacturing, you can create parts that were previously impossible to manufacture.

Are you ready to see what your design looks like in PA12 or Glass-Filled Nylon? Our team of experts is here to help you refine your DfAM strategy and move from prototype to production.
