TECHNOLOGIESTRADITIONAL MANUFACTURINGUrethane Casting

Cast Urethanes

CAST URETHANE

Produce high-quality prototypes and low-volume production parts

Urethane castings closely simulate injection molded parts. This gives our clients a fast low-cost process for producing prototypes and low-volume production parts without the high cost of metal tooling. Urethane casting involves creating a master model, typically using 3D printing, which is then used to make a silicone mold. Liquid urethane is poured into the mold and cured to form the final part.

REQUEST QUOTE

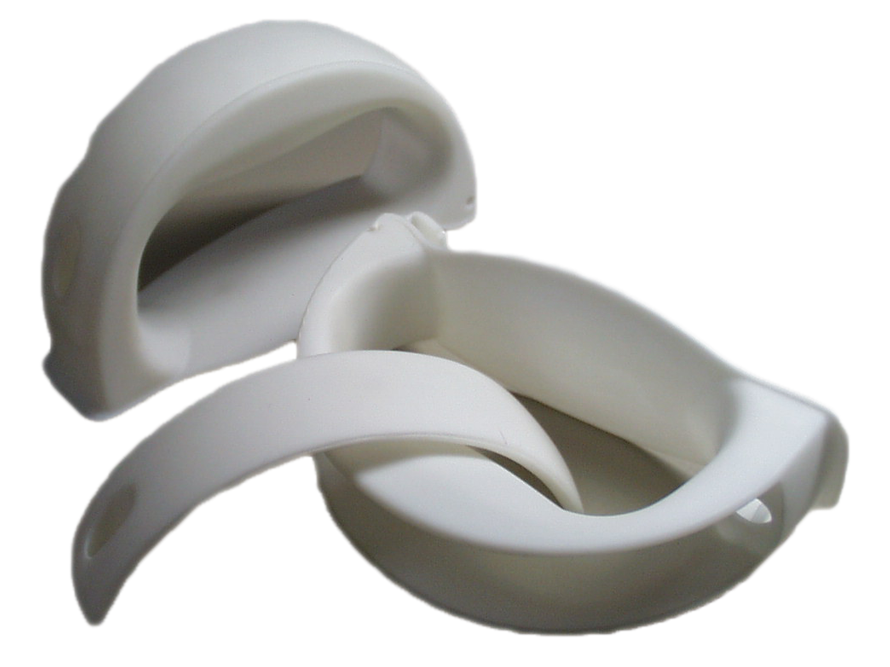

Cast Urethane

Why Choose Urethane Casting?

Urethane casting remains popular due to its cost-effectiveness for small-scale production, rapid turnaround times, and excellent surface finish quality.

It serves as a bridge between prototyping and full-scale production, allowing for design validation and functional testing without the high costs associated with traditional manufacturing methods like injection molding.

Cast Urethane Projects

Prototyping: Create functional prototypes with high precision and detail.

Low-Volume Production: Ideal for producing small batches of parts quickly and economically.

Design Flexibility: Supports complex geometries and a wide range of material properties.

Customization: Offers options for color, texture, and finish customization.

Applications

Rapid Prototyping

When you need a prototype, VCM is a good solution for quickly producing highly detailed parts.


Short Run Production

Get the parts you need faster, minimizing costs without extra post-production processes.


Manufacturing Fixtures

MJF is cost-effective, durable, and precise, making it an excellent option for manufacturing fixtures and jigs.

Materials


    Rigid Materials
    TC-852 TC-854 TC-890 TC-895 TC-885 FR WC-783
    General
Purpose		 High Impact RoHS
compliant		 Heat
 Resistant		 Fire
Retardant		 Water
Clear
PHYSICAL PROPERTIES: Off White Transparent Yellow White Black Off White Clear
Hardness , Shore D ASTM D-2240:  78 (+/-) 2 84 (+/-) 2 80 (+/-) 2 84 (+/-) 2 78 (+/-) 2 82 (+/-) 2
Tensile Strength, (psi) ASTM D-638:  7,000 10,060 7,600 10,300 5,950 6,650
Tensile Modulus, (psi) ASTM D-638:  240,000 330,000 240,000 293,000 224,000 260,000
Flexural Strength, (psi) ASTM D-790:  10,500 13,700 10,000 12,700 9,600 11,000
Flexural Modulus, (psi) ASTM D-790:  270,000 360,000 250,000 317,000 265,000 320,000
Izod Impact, (ft.-lb./in.) ASTM D-256:  0.70 1.14 0.70 0.88 0.57 1.00
Elongation, (%) ASTM D-638:  12.0 10.5 10.0 9.1 20.0 65.0
Density, (g/cc) ASTM D-792:  1.15 1.20 1.14 1.12 1.26 1.05
  Cu. In. / Lb.:  25.2 24.5 25.0 24.0 22.6 26.4
Heat Deflection Temperature
  HDT - ASTM D-648
 @ 66psi: 		 220F (+/-) 5F 190F (+/-) 5F 195F (+/-) 5F 340F (+/-) 5F 190F (+/-) 5F 158F (70C)
  HDT - ASTM D-648
 @ 264psi: 		 200F (+/-) 5F 170F (+/-) 5F 177F (+/-) 5F 218F (+/-) 5F 173F (+/-) 5F
Coefficient of Thermal Expansion, (in/in/F) ASTM E831-06:        0.0000731   0.0000900
Compressive Strength, (psi) ASTM D-695:            8,350
Compressivel Modulus, (psi) ASTM D-695:            350,000


    Flexible Materials - F Series  (see additional materials below)
    F-15 F-25 F-32 F-42 F-50 F-60
    General
Purpose		 General
Purpose		 General
Purpose		 General
Purpose		 General
Purpose		 General
 Purpose
PHYSICAL PROPERTIES: Pale Yellow Pale Yellow Pale Yellow Pale Yellow Pale Yellow Pale Yellow
Hardness , Shore A ASTM D-2240:  15 (+/-) 5 25 (+/-) 5 32 (+/-) 5 42 (+/-) 5 55 (+/-) 5 60 (+/-) 5
Tensile Strength, (psi) ASTM D-412:  235 345 675 730 845 685
Tensile Modulus, (psi) ASTM D-412:
   @100% Straine:          150 312
   @200% Straine:          275 497
   @300% Straine:          390 623
Elongation, (%) ASTM D-638:  600 1,100 950 660 425 300
Tear Strength (pli) ASTM D624-00e1 24 45 85 76 95 57
Density, (g/cc) ASTM D-792:  1.02 1.03 1.06 1.09 1.07 1.06
  Cu. In. / Lb.:  27.3 26.9 27.1 26.0 26.1 26.0

    Flexible Materials - F Series  (see additional materials below
    F-62 FR F-64 F-70 F-82 F-85 F-90
    Flame
Retardant		 General
Purpose		 General
Purpose		 RoHS
compliant		 General
Purpose		 General
Purpose
PHYSICAL PROPERTIES: Pale Yellow Translucent
Neutral		 Translucent
Yellow		 Pale
Yellow		 Buff Opaque Tan/Opaque
Hardness , Shore A ASTM D-2240:  60 (+/-) 5 65 (+/-) 5 70 (+/-) 5 80 (+/-) 5 85 (+/-) 5 90 (+/-) 5
Tensile Strength, (psi) ASTM D-412:  625 1,200 940 2,100 2,500 3,000
Tensile Modulus, (psi) ASTM D-412:        364   3,300
   @100% Straine:      430
   @200% Straine:      660
   @300% Straine:      900
Elongation, (%) ASTM D-638:  310 515 315 385 275 440
Tear Strength (pli) ASTM D624-00e1 60 125 87 178 180 300
Density, (g/cc) ASTM D-792:  1.09 1.07 1.11 1.09 1.08 1.08
  Cu. In. / Lb.:    26.2 25.8 25.9 25.7 25.6

    Flexible Materials - STSeries
    ST-1060 ST-1075 ST-1085 ST-1087 ST-3040 ST-3050
    High Tear
Strength		 High Tear
Strength		 High Tear
Strength		 Flame
Retardant		 General
Purpose		 General
Purpose
PHYSICAL PROPERTIES::   Amber Clear Amber Clear   Pale Yellow Amber Clear
Hardness , Shore A ASTM D-2240:  60 (+/-) 5 75 (+/-) 5 85 (+/-) 5 83 (+/-) 5 40 (+/-) 5 50 (+/-) 5
Tensile Strength, (psi) ASTM D-412:  900 1,600 2,125 1,500 765 1,200
Tensile Modulus, (psi) ASTM D-412:
   @100% Straine:  300 650 761   100
   @200% Straine:  445 820 996   180
   @300% Straine:  560 980 1,219   225
Elongation, (%) ASTM D-638:  590 550 600 300 1,500 1,400
Tear Strength (pli) ASTM D624-00e1 120 190 255 160 120 185
Density, (g/cc) ASTM D-792:  1.05 1.10 1.10 1.08 1.07 1.07
  Cu. In. / Lb.:  26.3 25.6 25.7 26.0 26.1 26.2

CAST URETHANE FAQs

How does urethane casting compare to injection molding for low-volume production?
Urethane casting offers significant advantages for quantities under 100 pieces:
  • No expensive hard tooling required (saving $10,000-50,000 in mold costs)
  • Faster turnaround times (48-72 hours vs. 4-8 weeks)
  • Design changes can be implemented quickly without new tooling
  • Comparable material properties and surface finish
  • Lower minimum order quantities (as low as 1 piece)
Can urethane cast parts include special features like threaded inserts or multiple materials?
Yes, our advanced casting process accommodates various special features:
  • Metal threaded inserts and bushings
  • Overmolded sections with different durometers
  • Embedded electronics or sensors
  • Clear windows or sections
  • Color matching to Pantone specifications
  • Custom textures and surface finishes
These features can be incorporated without additional tooling costs, making complex assemblies more cost-effective in low volumes.
