TECHNOLOGIESADDITIVE MANUFACTURINGMJF | Multi Jet Fusion

3D Printing Additive Manufacturing | Multi-Jet Fusion

MJF | Multi-Jet Fusion

Multi Jet Fusion (MJF) is a 3D printing technology that produces multiple parts quickly using production thermoplastic materials for both prototypes and production parts. Its speed and material costs offer a viable method for small lot production without the cost of tooling. We use state-of-the-art HP 3D printers to give you optimal results for your projects.

Functional Prototypes and End-Use Production Parts

MJF has revolutionized how we approach rapid prototyping and production manufacturing. It’s fast, incredibly flexible, and ideal for creating complex geometries that traditional methods struggle to replicate. Ready to build your prototype or get fast production with MJF?

Get MJF Quote

Applications

Rapid Prototyping

When you need a prototype, MJF is the ideal solution for quickly producing highly detailed parts.


Short Run Production

Get the parts you need faster, minimizing costs without extra post-production processes.


Manufacturing Fixtures

MJF is cost-effective, durable, and precise, making it an excellent option for manufacturing fixtures and jigs.

What does MJF feel like?

Multi Fusion Technology creates highly detailed parts. When taken out of the machine, the parts have a grey, chalk-like graininess, and the material color is naturally gray or can be dyed black. There are finishing options available to smooth and seal the parts. Our most popular option is Vaporsmooth, a chemical vapor process that smooths out surface roughness while maintaining intricate details. This process creates a glossy finish that resembles injection-molded parts, without the high cost.

Get a Free Sample >>>

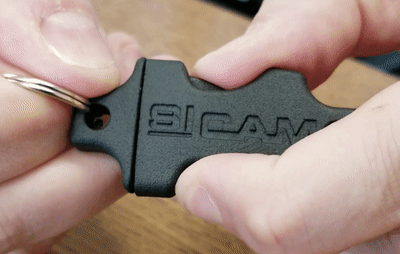

mjf
Get a Free Sample

What does it feel like? Does it flex? Is it strong? Request a free sample to feel the material and see for yourself...

Send me a Sample

Take Your Part to the Next Level

Muti-Jet Fusion Finishes

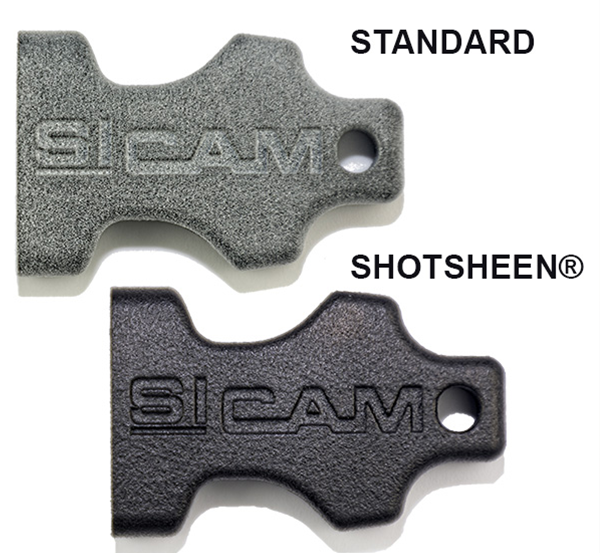

The standard condition of parts after removal from the MJF machine appears as a faded gray with mat texture. SICAM takes it a step further. Parts go through our patented SHOTSHEEN™ process for more professional, quality parts. We also offer VAPORSMOOTH for sealing and smoothing parts, and CERAKOTE that provides a wide range of colors, as well as an option for a coating designed to provide a high-quality and long-lasting finish for parts requiring electrical insulation or ESD.

Download the Finishes Sheet

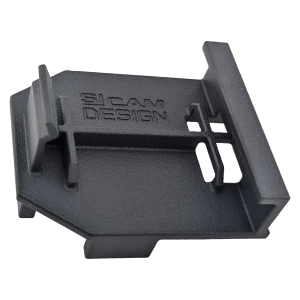

SHOTSHEEN image

SHOTSHEEN

  • Semi-Gloss Textured Finish
  • Scratch Resistant
  • Uniform Color

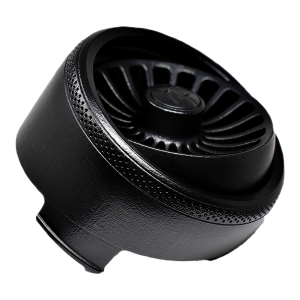

VAPORSMOOTH image

VAPORSMOOTH

  • Gloss Finish
  • Sealed Non-Porous Surface
  • Improved Mechanical Properties

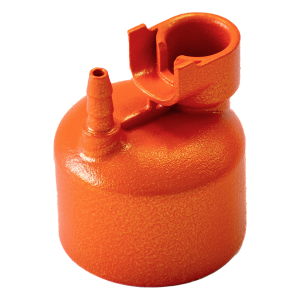

CERAKOTE image

CERAKOTE

  • Durable Ceramic Coating
  • Heat & Chemical Resistant
  • Variety of Colors

Materials

★    Best      ●   Good      ■    Fair      ◆    Not Recommended


 HP 3D HR PA 11 HP 3D HR PA 12 HP 3D HR PA 12 GB HP 3D HR PP

📑 PA 11 Data Sheet📑 PA 12 Data Sheet📑 PA 12 GB Data Sheet📑 PP Data Sheet
Stiffness
●
●
★ ■
Impact
Resistance
●
■
 ◆ ■
Elongation
●
■
 ◆ ■
Dimensional
capability
●
★
●
■
Level of
detail		 ★
●
●
■
Flat part
●
●
★
◆
Temperature
resistance		 ◆
■
●
■
Chemical
resistance
●
●
n/a ★
Low moisture
absorption		 ◆
◆
◆
★
Lightweight
●
●
■
 ★
Surface
Roughness
●
★
●
■



Tolerances

Prototypes

Material TypeFirst 3 Inches Each Additional Inch
HD 3D HR PA-12±0.01±0.002

FAI+

Material TypeFirst 3 Inches Each Additional Inch
HD 3D HR PA-12±0.01±0.002

Resources

STATEMENTS HP 3D HR PA 11 HP 3D HR PA 12 HP 3D HR PA 12 GB HP 3D HR PP
Bio-Compatibility
✔︎
 ✔︎ n/a ✔︎
REACH / RoHS ✔︎
 ✔︎
 ✔︎
 ✔︎


RESOURCES

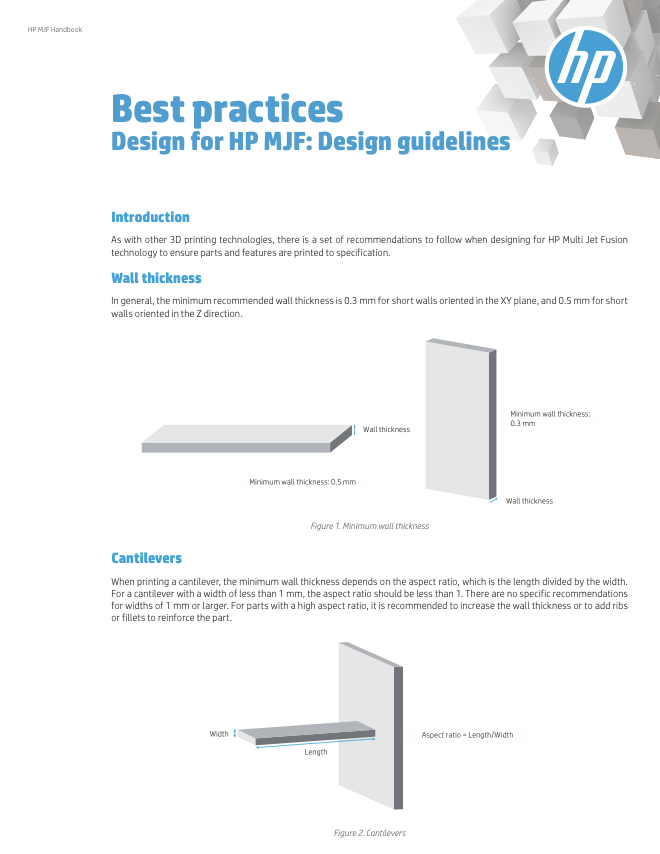

Design Guidelines | Best Practices

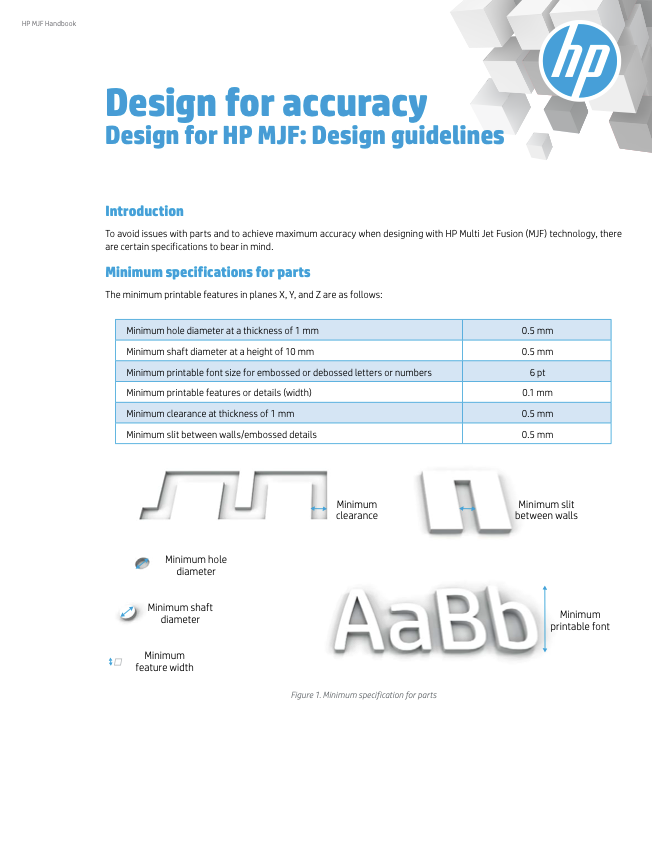

Design for Accuracy

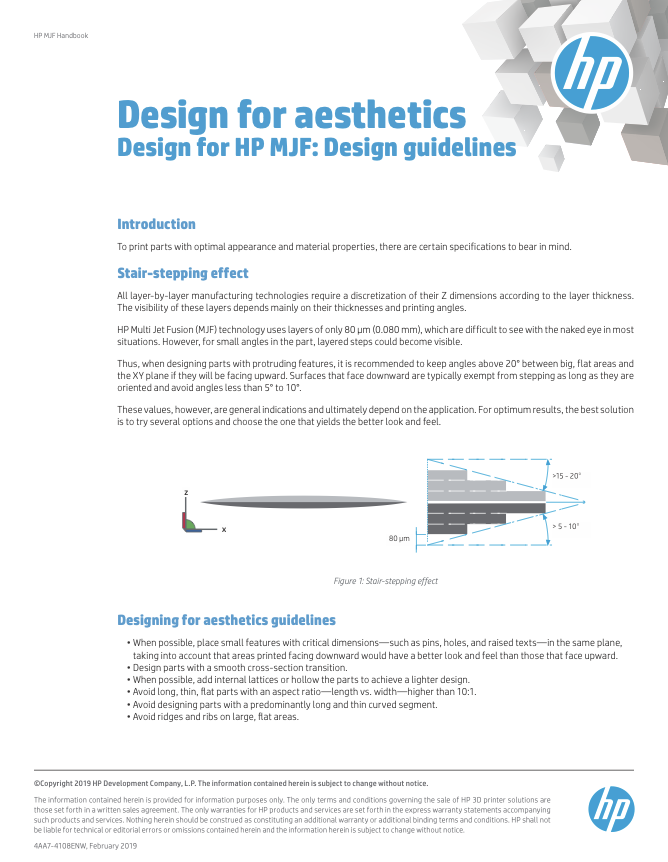

Design for Aesthetics

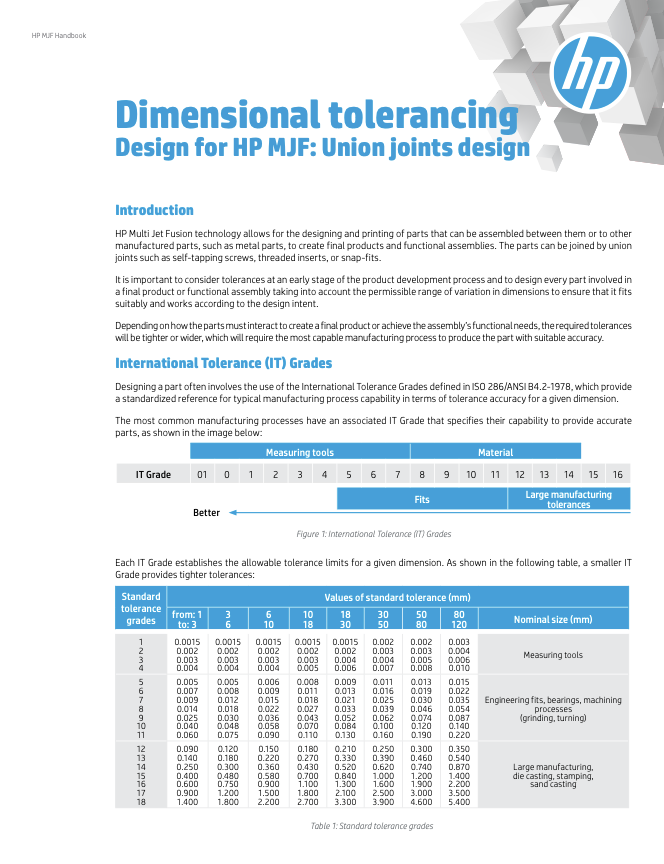

Dimensional Tolerancing


MJF FAQs

What is the largest part that can be made with MJF
The max build size for the machine is 14.96 x 11.18 x 14.96" But as with other processes, it may be possible to split large parts into smaller ones to fit the build volume.
What is the minimum recommended wall thickness for MJF parts?
The minimum recommended wall thickness is 0.02", but thicker walls can achieve better mechanical properties
What are the options for post-processing Multi Jet Fusion parts?
Post-processing options include Shotsheen for a smooth finish, Dyeing for a uniform black finish, Vapor smoothing for enhanced surface quality, and Cerakote for added functionality (e.g., temperature, chemical, and UV resistance) and color customization. Discuss options during ordering to meet specific aesthetic or functional needs.
What information should I provide when placing an order for Multi Jet Fusion parts?

To ensure optimal results, provide detailed CAD files (STL or STEP), specify material type, desired surface finish, tolerances, and any post-processing requirements. Including information about the part’s application (e.g., mechanical stress, temperature exposure) can help in optimizing production parameters.

Have more Questions?

Contact Customer Service
