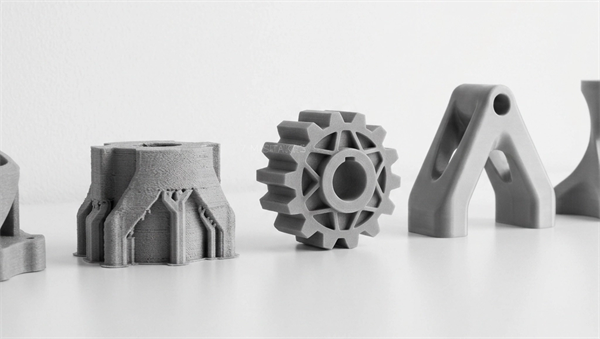

7 Mistakes You’re Making with Surface Finish Specs for 3D Printed Parts
You’ve spent weeks perfecting the geometry of your part. The FEA looks solid, the tolerances are tight, and the assembly is ready for a production run. But then the parts arrive from the lab or a service provider, and they don't look: or feel: the way you expected. The surface is grainy, the o-ring groove is leaky, or the "smooth" face is covered in stair-steps.
As a mechanical design engineer, you’re likely used to the predictable world of CNC machining or injection molding. But additive manufacturing (AM) is a different beast. Specifying surface finish in 3D printing isn't just about picking a number on a chart; it’s a strategic decision that affects cost, lead time, and part performance.
At SICAM, we’ve helped thousands of engineers move from prototype to production. We see the same hurdles over and over again. Here are the seven most common mistakes engineers make with surface finish specs for 3D printed parts and how you can avoid them.
1. The "Layer Height" Fallacy
The most common misconception in 3D printing is that a lower layer height automatically equals a better surface finish. If you’re coming from the world of FFF (Fused Filament Fabrication), you know that 100 microns looks better than 300 microns. But across different technologies, this rule breaks down.
In powder-bed technologies like MJF (Multi Jet Fusion) or SLS (Selective Laser Sintering), the "finish" is determined more by the material’s grain size and the thermal environment of the build chamber than by the layer thickness. A 100-micron MJF part will have a matte, slightly grainy texture regardless of the layer height because of how the powder particles fuse.
If you specify a super-fine layer height thinking it will eliminate the "sugar-cube" texture of a powder-bed part, you're only driving up the build time (and cost) without significantly changing the aesthetic.
2. Over-Specifying Ra Values Without Context
In traditional machining, we use Ra (Roughness Average) as the gold standard. You call out an Ra 32, and you know exactly what you’re getting. In 3D printing, Ra can be incredibly misleading.
Because AM surfaces are often periodic (like the ridges in FFF) or porous (like SLS), a single Ra measurement doesn't tell the whole story. A part might have a "smooth" Ra value but still possess deep valleys between layers that cause seals to fail.
When you over-specify tight Ra tolerances on a raw 3D printed part, you are often asking for the impossible without post-processing. Instead of just dropping a number on a drawing, describe the functional requirement. Does it need to be air-tight? Is it a sliding fit? Understanding the TECHNOLOGIES available is the first step toward realistic specs.
3. Ignoring the "Downskin" vs. "Upskin" Reality
In almost every AM process, the orientation of the part in the build volume dictates the surface quality.
- Upskin: Surfaces facing "up" toward the heat source or light source generally look the best.
- Downskin: Surfaces facing "down" toward the build plate often look the worst.
In SLA (Stereolithography) or FFF, the downskin surfaces require support structures. When those supports are removed, they leave behind "witness marks": tiny pits or bumps that ruin a smooth finish. Even in support-less processes like SLS, the downskin surfaces can experience "overshoot," where heat bleeds into the surrounding powder, creating a rougher texture.
If you don't communicate which surfaces are "critical," the operator might orient your part in a way that puts supports right on your most visible face. Always indicate your primary aesthetic or functional surfaces so the build can be oriented correctly.
4. Forgetting the Physics of Fluid Flow and Friction
Engineers often design complex manifolds or cooling channels using AM because the SOLUTIONS allow for geometries that are impossible to machine. However, they often forget that the internal surface finish of a 3D printed part is rarely as smooth as a drilled hole.
A raw SLS or MJF internal channel has significant surface roughness. If you are designing for high-pressure fluid flow, that roughness creates turbulence and pressure drops that your CAD model didn't account for. Similarly, in sliding assemblies, the high friction of a raw 3D printed surface can lead to premature wear or heat buildup.
Before you finalize a design, consider if you need secondary processes like abrasive flow machining like Shotsheen™ or vapor smoothing to reach those internal areas.
5. Underestimating the Cost and Time of Post-Processing
"We’ll just sand it down."
We hear this all the time, and it’s a recipe for budget overruns. While post-processing can make an FFF part look like an injection-molded one, it is often a manual, labor-intensive process.
There are several levels of finishing:
- Standard: Support removal and a light media blast (typical for MJF/SLS).
- Vapor Smoothing: A chemical process that "melts" the surface slightly to create a glossy, sealed finish.
- Tumble Polishing: Using vibratory media to smooth out edges.
- Painting/Plating: High-end finishes for consumer-facing parts.
Each of these steps adds days to your lead time and can significantly increase the cost per part. When you’re at the Online Quote stage, make sure you are selecting the finish that is truly necessary for the part's end use.
6. Treating All Materials as "Smoothable"
Not every material reacts the same way to finishing techniques.
- Nylon 12 (MJF/SLS): Takes vapor smoothing and dyeing exceptionally well.
- TPU (Flexible): Very difficult to sand or tumble because the material "bounces" back.
- Resins (SLA): Easy to sand to a high gloss, but can be brittle.
If you specify a high-gloss finish on a soft TPU part, you’re going to run into issues. It’s vital to match your material choice with your surface finish expectations. Check out our RESOURCES to see how different materials handle post-processing before you commit to a spec.
7. The "Consolidation Trap"
One of the best things about ADDITIVE MANUFACTURING is part consolidation. Why have ten parts when you can print one?
The mistake happens when that one consolidated part has deep recesses, internal cavities, or "caged" features that are impossible to reach with finishing tools. If you need a smooth surface on the inside of a sphere, you’re out of luck with traditional tumbling or sanding.
When designing for AM, you have to design for the finish as much as you design for the form. If a surface is critical, make sure a human hand or a finishing media can actually reach it.
How to Get It Right the First Time
Specifying surface finish for AM is a balance of expectation versus reality. To avoid these seven mistakes, follow this simple checklist:
- Define the "Show" Face: Explicitly state which surfaces are aesthetic and which are functional.
- Think Function First: Do you need smoothness for airflow, or just to look good?
- Choose Your Tech Wisely: If you need a mirror finish, start with SLA. If you need a rugged, matte finish, go with MJF.
- Ask the Experts: If you aren't sure how a specific geometry will come out, reach out to us.
At SICAM, we act as a bridge between your CAD file and the final physical part. We understand the nuances of how orientation, material, and post-processing interact. By avoiding these common pitfalls, you’ll save time, reduce costs, and get parts that actually perform the way you designed them to.
Ready to see how your design looks in the real world? Get an online quote today and let’s get to work.
