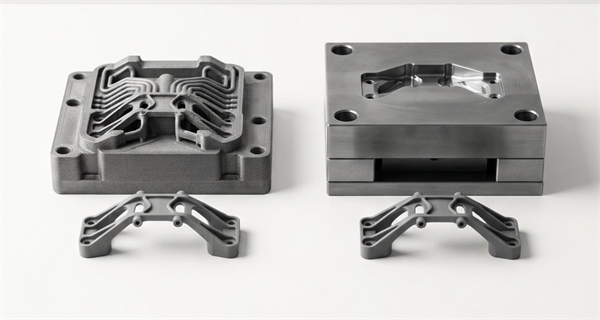

3D Printed Tooling Vs Traditional Injection Molding: Which Is Better for Your Bridge Production?

You’ve finished the prototyping phase. Your design is locked, the stakeholders are happy, and the market is waiting. But here’s the rub: you aren’t quite ready to pull the trigger on a $50,000 steel mold for 100,000 units. You need parts now: maybe 500, maybe 5,000: to bridge the gap between your R&D lab and the full-scale factory floor.

Welcome to the world of bridge production. It’s that critical middle ground where the wrong manufacturing choice can either eat your entire budget or delay your launch by months.

In the red corner, we have Traditional Injection Molding (IM): the heavyweight champion of consistency and volume. In the blue corner, we have 3D Printed Tooling (Rapid Tooling): the agile disruptor built for speed and digital flexibility.

At SICAM, we see engineers wrestle with this choice every day. As your "tech-forward mentor," I’m going to break down which path is actually better for your bridge production, focusing on speed, cost, and the technical nuances that usually get buried in the fine print.

The Bridge Production Dilemma

Bridge production isn't just about making parts; it's about making progress. You might be using this phase to:

• Test the market with a "soft launch."
• Fulfill early orders while a permanent steel tool is being machined (which can take 8-12 weeks).
• Finalize assembly line processes.

The goal is to get functional, end-use parts in the right material as fast as possible. Traditionally, this meant expensive aluminum molds. Today, additive manufacturing has changed the math.

1. 3D Printed Tooling: The Speed Demon

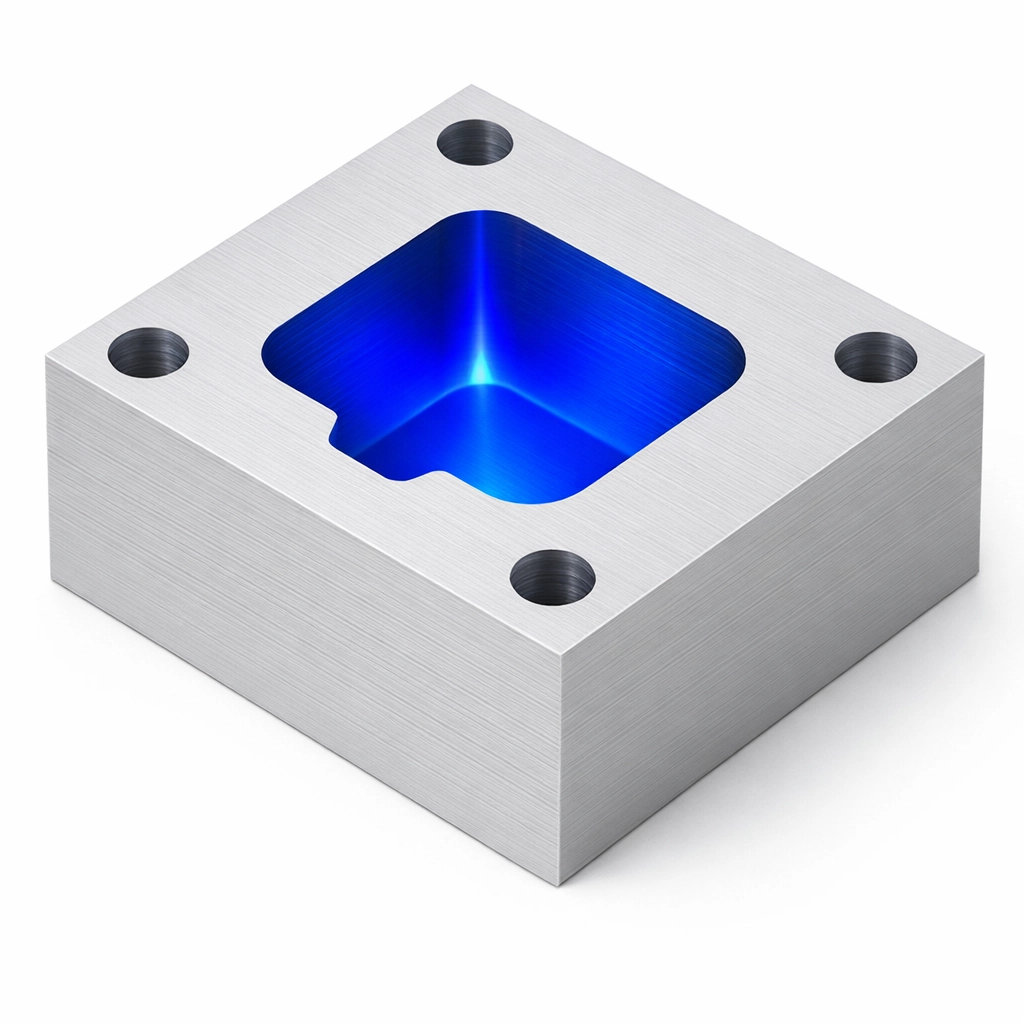

When we talk about 3D printed tooling, we aren’t talking about 3D printing the parts themselves. We’re talking about printing the actual mold cavities and inserts used in a standard injection molding press.

Why It Wins on Speed

Traditional molds require CNC machining, EDM (Electrical Discharge Machining), and manual polishing. Even a "simple" aluminum tool can take 3 to 4 weeks. With 3D printed tooling, we can print a mold in a matter of hours. When you factor in post-processing and setup, you're looking at a lead time of 3 to 5 days.

If your project is on a "need it yesterday" timeline, 3D printed tooling is your best friend. It allows you to fail fast or succeed faster. If the design needs a slight tweak after the first 50 parts, you aren’t out $10k and a month of time; you just update the CAD and print a new insert.

The Trade-offs

It’s not all sunshine and rainbows. 3D printed molds (often made using PolyJet or SLA technologies) are essentially high-temperature plastics. They don't dissipate heat like metal does. This means cycle times are longer because you have to wait for the part to cool without the help of complex internal cooling lines.

Also, these molds have a lifespan. While an aluminum tool might get you 10,000 parts, a 3D printed mold usually taps out around 50 to 100 shots depending on the material being injected.

2. Traditional Injection Molding: The Reliable Workhorse

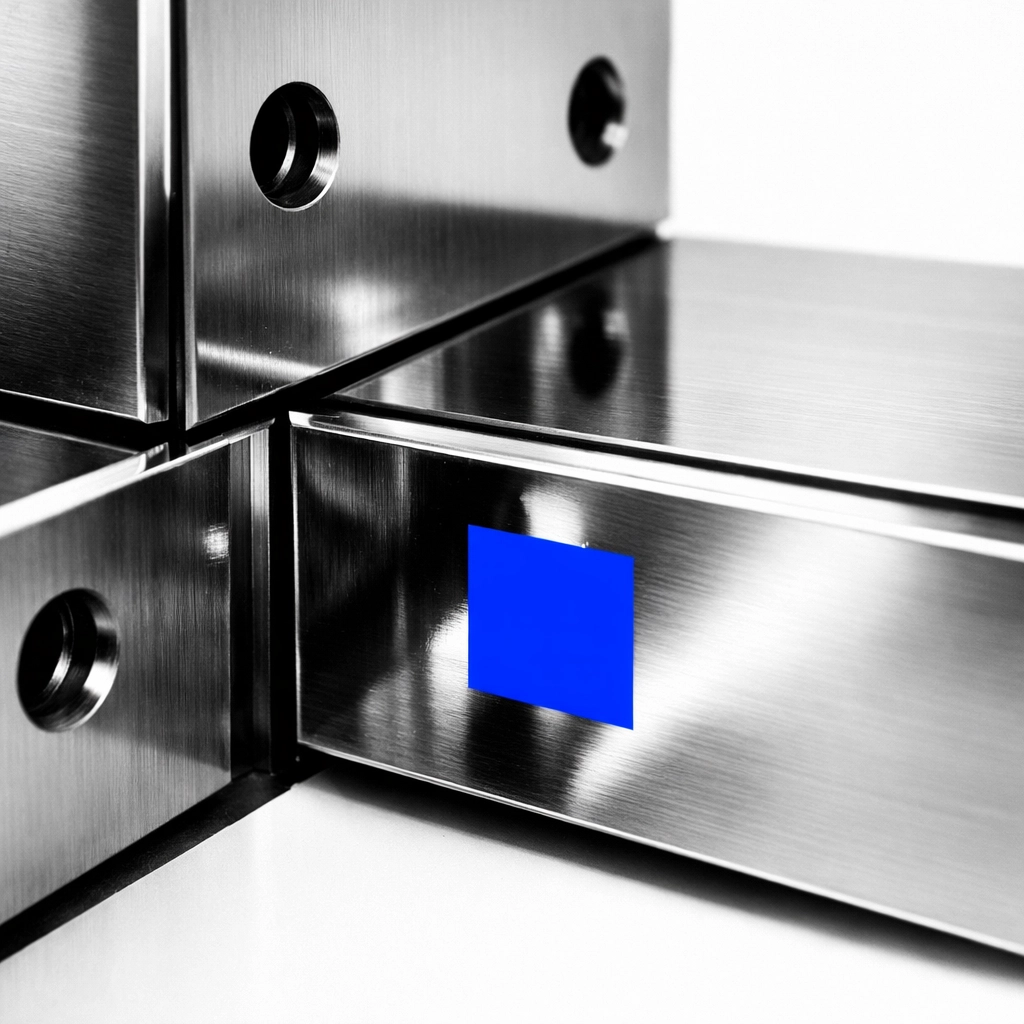

Traditional IM uses metal molds (usually aluminum for bridge runs or steel for high volume). This is the gold standard for surface finish, tolerance, and material properties.

Why It Wins on Quality

If your bridge production requires 10,000 units with a high-gloss finish and tight tolerances (±0.005”), traditional molding is non-negotiable. Metal molds can handle higher injection pressures and temperatures, allowing for a wider range of engineering-grade plastics, including glass-filled resins that might chew through a plastic 3D printed mold.

The Cost Hurdle

The barrier is the upfront investment. You’re paying for the "NRE" (Non-Recurring Engineering) costs. For bridge production, aluminum is often used because it’s easier to machine than steel, but it still requires a significant capital outlay before the first part is even born.

3. The Head-to-Head Comparison

Let’s look at the numbers and technical specs.

The Breakeven Point

Research shows that for very low volumes: say, 1,000 parts or fewer: 3D printing methods (either direct printing or 3D printed tooling) can cost up to 85% less than traditional IM. However, the breakeven point where traditional molding becomes more economical usually sits around the 13,000-unit mark.

For most "bridge" scenarios where you need 500 to 2,000 parts, the choice usually hinges on design certainty. If there is any chance you’ll need to change the design, 3D printed tooling is the safer bet for your budget.

4. Technical Nuances for the Engineer

As a Mechanical Design Engineer, you need to know the "gotchas." Here’s what we see at SICAM when helping clients navigate these solutions:

Heat Management

3D printed molds are insulators. In traditional IM, the metal mold acts as a heat sink. In rapid tooling, you might need to use compressed air to cool the mold between shots. If your part has thick walls, the cooling time will skyrocket, making 3D printed tooling less efficient.

Draft Angles

You can’t skip the basics. Both methods require draft angles, but 3D printed molds are more "grabby" than polished metal. We usually recommend increasing your draft angles by an extra degree or two to ensure the part doesn't take a piece of the mold with it when it ejects.

Secondary Operations

3D printed molds will leave slight layer lines on your parts. If your part is an internal bracket, who cares? If it’s a consumer-facing housing, you’ll need to factor in the cost of bead blasting or painting. Holes smaller than 1mm often need to be drilled post-molding because the 3D printed pins are too fragile to survive the injection pressure.

5. Which One Is Better for Your Bridge Production?

There is no "one size fits all," but here is the SICAM guide to choosing:

Choose 3D Printed Tooling if...

• You need parts in days, not weeks. If you have a trade show or a critical testing deadline next week, this is the only way.
• Your volume is under 200 units. At this level, the cost of a metal tool is impossible to justify.
• The design is still "fluid." You expect a Rev 2.0 based on early feedback.
• You're using standard materials like ABS, PP, or low-temp PE.

Choose Traditional Injection Molding if...

• Your bridge volume is 5,000+ units. At this point, the durability of aluminum pays for itself.
• The surface finish is a primary requirement. You need "out of the mold" perfection.
• You are using high-temp or abrasive materials (like 30% Glass-Filled Nylon).
• Tolerances are ultra-critical. You need the rigidity of metal to hold those thousandths of an inch.

A Hybrid Approach

Why choose just one? Many of our most successful partners use a hybrid strategy.

They start with direct 3D printing for the first 10-20 units to check fit and function. Then, they move to 3D printed tooling for the first 100 units to get "real" molded parts for UL testing or environmental stress screening. While those 100 parts are being tested, we’re already kicking off the aluminum tool for the 5,000-unit bridge run.

This "Digital Manufacturing" workflow eliminates the downtime that kills product launches. You can read more about why this approach is winning on the modern factory floor in our article on The Short Run Production Outlook.

Final Thoughts

Bridge production shouldn't be a bottleneck; it should be a springboard. Whether you choose the lightning-fast turnaround of 3D printed tooling or the tried-and-true reliability of traditional injection molding, the key is knowing your volume and your "must-have" specs.

Still not sure which path fits your specific CAD file? That’s what we’re here for. At SICAM, we combine the high-tech speed of a digital shop with the personal touch of a manufacturing partner who actually knows your name.
