Can 3D-Printed Mold Inserts Really Replace Traditional Tooling?

Can 3D-Printed Mold Inserts Really Replace Traditional Tooling?

A practical guide to additive tooling for short-run injection molding: where polymer inserts work, where they don't, and how conformal cooling changes the math

If you need a few dozen or a few hundred injection-molded parts, traditional tooling can feel like the wrong first step. Machined steel or aluminum molds deliver excellent durability, but they also require time, engineering effort, and upfront cost.

That is where 3D-printed mold inserts, also called additive tooling or rapid tooling, can help.

Could this be a smart step for stop projects? Additive inserts can replace traditional tooling for prototypes, bridge production, short runs, and complex parts. They are not a universal substitute for production-grade steel tooling, especially when volumes, temperatures, pressures, or cosmetic requirements are high.

The right choice depends on your part, material, quantity, and schedule.

What is a 3D-printed mold insert?

A mold insert is the portion of an injection mold that creates the part’s cavity and core surfaces. Instead of manufacturing the entire mold from scratch, an additive insert can be designed to fit into an existing mold base or frame.

The arrangement typically looks like this:

  1. An existing mold base provides alignment, clamping, and machine interfaces.
  2. A 3D-printed insert contains the part geometry.
  3. Molten plastic flows into the insert cavity.
  4. The insert is removed or replaced when the design changes or the tool reaches the end of its useful life.

This hybrid approach is important. You are not necessarily 3D printing every component of the mold. You are using additive manufacturing where it provides the most value: the geometry-defining portion of the tool.

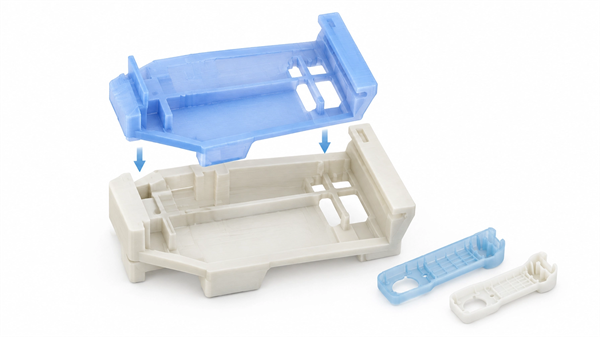

Exploded view of a blue polymer mold insert fitting into a white polymer mold frame

Where additive tooling makes sense

3D-printed inserts are most useful when the cost or lead time of conventional tooling is difficult to justify.



Prototypes and design validation

Additive inserts allow engineers to produce injection-molded samples before committing to a final production tool. This lets you evaluate:

  • Form, fit, and assembly
  • Material behavior
  • Sink, warp, and weld lines
  • Snap fits and living hinges
  • Surface appearance
  • Functional performance

This is especially valuable when a prototype must be made from the same or a similar production thermoplastic rather than from a printed material.



Bridge tooling

Bridge tooling fills the gap between prototype approval and production tooling. It can support early customer testing, regulatory submissions, pilot builds, or market validation while a longer-life tool is being designed and manufactured.

If the design is still changing, a replaceable additive insert can reduce the risk of repeatedly modifying an expensive production mold.



Short runs and low-volume production

For a limited quantity, the economics can favor an additive insert. The insert may be faster and less expensive to produce than a fully machined tool, even if its cycle time is slower and its service life is shorter.

This makes additive tooling a candidate for:

  • Replacement parts
  • Custom or regional product variants
  • Low-volume enclosures
  • Pilot production
  • Service parts
  • Complex components with uncertain demand



Complex geometries

Additive manufacturing can create internal features and tool shapes that are difficult or expensive to machine. This can be useful for deep cavities, intricate ribs, undercuts, and parts with challenging cooling requirements.

The design still needs draft, ejection, parting-line, and filling considerations. Additive manufacturing expands the tooling options; it does not remove the need for injection-molding design discipline.



Which 3D-printing process is right for an insert?

The best process depends on the expected tool life, detail level, temperature, pressure, and surface requirements.

MJF and SLS: practical options for prototype and bridge tooling

MJF and SLS use production thermoplastic powders and can produce strong, complex forms without support structures. Their design freedom makes them useful for low-volume tooling and inserts with complicated geometry.

They are often considered when:

  • The run is relatively short
  • The insert needs good toughness
  • The geometry is complex
  • The surface does not require a highly polished cosmetic finish
  • Fast design changes are important

SICAM’s MJF capabilities and SLS capabilities support the rapid production of functional thermoplastic components and can be evaluated for additive tooling applications.

SLA: useful for fine detail and smooth surfaces

SLA can produce fine features and smooth surfaces, which can be valuable when the insert contains small details or when the molded part requires a cleaner surface directly from the tool.

However, SLA resins are not interchangeable with production thermoplastics. Heat resistance, brittleness, and repeated exposure to injection pressure must be evaluated carefully. SLA is often a strong candidate for very short runs, fine-detail inserts, and proof-of-process work rather than long production campaigns.

See SICAM’s SLA 3D-printing services for more information about the process.

Metal additive manufacturing: when polymer inserts are not enough

Metal additive manufacturing can provide a bridge between polymer rapid tooling and conventional tooling. Metal inserts offer greater strength, improved heat transfer, and better resistance to repeated injection cycles.

They are particularly attractive when the design benefits from conformal cooling or when a polymer insert would not withstand the process conditions.

Metal AM still usually requires post-processing, machining, finishing, and careful inspection. It is more expensive than a polymer insert, so its value is strongest when the tool needs higher performance but the geometry or cooling design would be difficult to produce conventionally.

SICAM also offers DMLS metal additive manufacturing as part of its broader manufacturing capabilities.

Conformal cooling is the major tooling advantage

Traditional cooling channels are usually drilled as straight passages through a mold. That approach works well for many designs, but it can leave hot spots around curves, ribs, bosses, and deep sections of the cavity.

Conformal cooling channels follow the shape of the part. Instead of staying straight, they can curve around the cavity at a more consistent distance from the molding surface.

Transparent polymer mold insert showing blue conformal cooling channels following the part contour

Better cooling can help with:

  • Shorter cycle times
  • More consistent part temperatures
  • Reduced warpage
  • Lower residual stress
  • More uniform shrinkage
  • Improved dimensional stability
  • Fewer localized defects

This is one of the strongest reasons to consider additive tooling. Complex cooling channels are difficult or impossible to create with conventional drilling, but additive manufacturing can build them into the insert.

There is an important distinction, however. Polymer inserts have low thermal conductivity, so cooling channels inside a polymer insert may not remove heat as efficiently as channels in a metal insert. Conformal cooling can still improve temperature control, but the benefit must be evaluated against the insert material, wall thickness, coolant flow, and expected cycle time.

For demanding production conditions, metal AM with conformal cooling may be the more practical solution.



The limitations of 3D-printed mold inserts

Additive inserts are useful because they are fast and flexible. They are not useful because they outperform steel in every category.

Tool life

Polymer inserts typically have a much shorter service life than machined steel or aluminum tooling. Depending on the insert material, part geometry, molding resin, pressure, temperature, and process settings, practical tool life may range from a small number of cycles to a few hundred.

Gate areas, thin cores, sharp corners, and ejection features are common failure points.

Thermal performance

Low thermal conductivity can lead to longer cooling times and heat accumulation. The insert may also experience dimensional changes as it cycles between hot and cool conditions.

Pressure and temperature limits

A polymer insert can deform, crack, or erode if exposed to excessive injection pressure, holding pressure, melt temperature, or mold temperature. Processing conditions often need to be more conservative than they would be with a metal tool.

Surface finish and dimensional stability

SLA can provide fine detail and a smooth surface, while MJF and SLS offer useful strength and geometric freedom. Even so, an additive insert may not match the surface finish, accuracy, or long-term stability of a properly finished production mold.

The insert may also reproduce its own surface texture in the molded part. If a cosmetic surface is critical, the tool surface may require additional finishing or a different tooling strategy.

When traditional tooling still wins

Traditional machined tooling remains the better choice when you need:

  • High production volume
  • Thousands or more molding cycles
  • Abrasive, glass-filled, or mineral-filled materials
  • High melt or mold temperatures
  • High injection pressures
  • Very tight dimensional repeatability over a long run
  • Highly polished or cosmetic surfaces
  • Fast, repeatable cycle times
  • Validated production processes

In these cases, steel or aluminum tooling can provide the durability, thermal performance, and consistency that a polymer insert cannot.

The decision is not “3D printing versus injection molding.” It is often a choice between different tooling strategies within the injection-molding process.



A practical way to decide

Before selecting an additive insert, review these questions:

  1. How many parts do you need?
    Compare the expected quantity with the insert’s estimated cycle life, including spare inserts if needed.
  2. What material will be molded?
    Check melt temperature, mold temperature, pressure, abrasiveness, shrinkage, and reinforcement.
  3. What is the part geometry?
    Look closely at thin cores, deep cavities, sharp corners, undercuts, ribs, and ejection loads.
  4. How important is cooling?
    Identify hot spots and determine whether conformal cooling could improve cycle time or reduce warpage.
  5. What surface finish is required?
    Cosmetic parts may need SLA, secondary finishing, metal tooling, or a different production plan.
  6. How likely is the design to change?
    If revisions are expected, a replaceable additive insert may reduce risk and shorten iteration time.
  7. What happens after the short run?
    Plan the transition to a longer-life aluminum, steel, or metal-AM tool before production demand increases.

SICAM can help evaluate these tradeoffs as part of a prototypes-to-production workflow. Our capabilities span additive manufacturing, injection molding, engineering, and low-volume manufacturing.



The bottom line

3D-printed mold inserts can replace traditional tooling when the job is short-run, design-intensive, or time-sensitive. They are especially valuable for prototypes, bridge tooling, low-volume production, complex geometries, and parts where conformal cooling can solve a real manufacturing problem.

They are not a blanket replacement for steel tooling. Tool life, thermal conductivity, pressure, temperature, surface finish, and molded material all matter.

The most effective approach is to match the tooling method to the production need: use polymer additive inserts for rapid and limited runs, consider metal additive tooling when strength and conformal cooling justify it, and move to conventional tooling when volume and performance demand long-term durability.

That is how additive manufacturing becomes more than a prototype technology. It becomes a practical step in the path from concept to production.
