Why PPS-CF is the Unsung Hero of High-Performance 3D Printing
The High-Performance Workhorse That Outsmarts PEEK and Ultem on Price and Precision
If you’ve ever designed a part for an environment that eats standard plastics for breakfast: hot engine bays, chemical processing lines, or downhole oil tools: you’ve likely looked at PEEK and Ultem. They are the heavy hitters of the high-performance polymer world. But there’s a third player that often flies under the radar, offering a price-to-performance ratio that’s hard to beat: PPS-CF (Carbon Fiber reinforced Polyphenylene Sulfide).
At SICAM, we’ve seen PPS-CF solve engineering headaches where other materials either warped, melted, or simply cost too much. It’s the "unsung hero" for a reason. It handles the heat, laughs at chemicals, and stays exactly where you put it.
Let’s break down why this material should be at the top of your list for your next high-demand project.
The Chemistry of Resilience: What is PPS-CF?
PPS (Polyphenylene Sulfide) is a semi-crystalline, high-performance thermoplastic. When you reinforce it with carbon fiber (CF), you’re not just making it stronger; you’re creating a composite that bridges the gap between industrial plastics and specialized aerospace alloys.
What makes PPS-CF unique is its molecular structure. It is inherently flame-retardant and possesses a level of chemical resistance that is nearly unparalleled in the polymer world. In fact, PPS has no known solvents at room temperature. Think about that for a second. Whether it’s gasoline, hydraulic fluid, or aggressive acids, PPS-CF remains structurally sound while others swell or degrade.
Key Property Snapshot:
- Thermal Stability: Heat Deflection Temperature (HDT) often exceeding 200°C.
- Chemical Immunity: Resistance to fuels, oils, and strong acids/bases.
- Flame Retardancy: Inherently UL94 V-0 rated.
- Stiffness: The carbon fiber reinforcement provides a high tensile modulus, making it incredibly rigid.
PPS-CF vs. The Big Two: PEEK and Ultem
As a mechanical design engineer, you are constantly balancing the "Iron Triangle": Performance, Cost, and Manufacturability. Here is how PPS-CF stacks up against the usual suspects.
1. PPS-CF vs. PEEK
PEEK (Polyether ether ketone) is the gold standard for high-temp plastics, reaching service temperatures of 260°C. However, PEEK is notoriously difficult to 3D print. It requires extreme chamber temperatures and is prone to warping. It’s also significantly more expensive.
The PPS-CF Advantage: PPS-CF offers similar chemical resistance to PEEK but at a much lower price point. While its maximum service temperature is slightly lower (~220°C vs 260°C), it is much more dimensionally stable during the printing process. If your application doesn't strictly require that extra 40 degrees of heat, PPS-CF will give you a more accurate part for less money.
2. PPS-CF vs. Ultem (PEI)
Ultem 9085 and 1010 are staples in the aerospace industry due to their Flame, Smoke, and Toxicity (FST) ratings. They are excellent materials, but they are amorphous.
The PPS-CF Advantage: Being semi-crystalline, PPS-CF generally offers better chemical resistance than Ultem. While Ultem is tough and slightly more ductile, PPS-CF is stiffer and has better long-term dimensional stability in humid or chemically aggressive environments. If you’re designing an under-hood automotive part that needs to resist oil and fuel, PPS-CF is often the superior choice.
Where PPS-CF Shines: Real-World Use Cases
Because of its unique blend of properties, PPS-CF has carved out a niche in industries where failure isn't an option.
Automotive (Under-the-Hood)

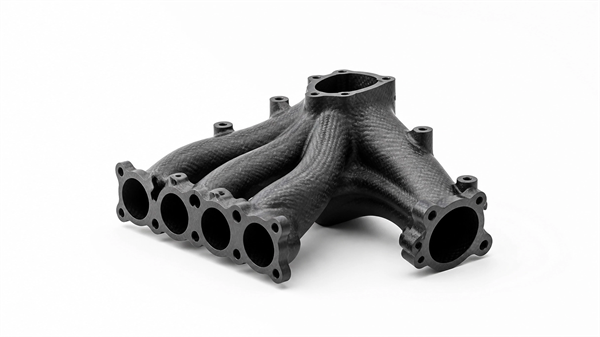

In the modern engine bay, temperatures are rising, and space is shrinking. PPS-CF is used for fuel system components, sensor housings, and coolant pumps. Its ability to withstand constant exposure to hot oil and ethylene glycol while maintaining tight tolerances makes it a go-to for rapid prototyping functional automotive parts.
Aerospace and Defense
Weight reduction is the name of the game. PPS-CF allows engineers to replace aluminum brackets and housings with lightweight, high-stiffness polymer parts. Because it is inherently flame retardant (UL94 V-0), it meets many of the stringent safety requirements for interior and non-critical structural components without the need for additional coatings.
Chemical Processing & Oil and Gas
Downhole tools and chemical manifolds are subjected to some of the harshest environments on Earth. PPS-CF’s resistance to H2S (sour gas), steam, and various acids makes it ideal for seals, bushings, and specialized valves. At SICAM, we’ve worked with engineers to transition these complex geometries from expensive machined alloys to 3D-printed PPS-CF.
Designing for PPS-CF: What Engineers Need to Know
When you move to high-performance composites like PPS-CF, the "standard" rules of 3D printing still apply, but with a few caveats.
Dimensional Stability and Tolerances
One of the best things about PPS-CF is its low coefficient of thermal expansion (CTE). The carbon fibers act as "anchors," preventing the plastic from shrinking as it cools. This means you can design parts with much tighter tolerances than you could with unfilled materials like Nylon or even PEEK.
Tip: When designing press-fit components or threaded interfaces, you can often use the same clearances you would use for machined aluminum.
Anisotropy is Real
Like all 3D-printed parts, PPS-CF is anisotropic, meaning it is stronger in the XY plane than in the Z-axis (layer-to-layer). However, the carbon fibers are oriented along the print path, which significantly boosts the strength and stiffness in the direction of the print lines.
Tip: Always orient your part so that the primary mechanical loads run along the XY plane. If you need maximum strength in all directions, consider our Injection Molding services for higher volume production.
Surface Finish
Because of the carbon fiber content, PPS-CF has a distinct matte, slightly textured finish. It looks and feels like a professional, industrial-grade part right off the printer. It doesn't have the "shiny plastic" look of cheaper materials, which is often a bonus for end-use parts.
Click to download the coupon and upload it with your CAD file when you submit your RFQ!
Why Partner with SICAM for PPS-CF?
Navigating the world of high-performance
polymers can be tricky. Getting the print parameters wrong on a material as specialized as PPS-CF leads to brittle parts or poor layer adhesion.
At SICAM, we don't just "hit print." We provide a complete project management service from prototype to production. Whether you need the rapid turnaround of Additive Manufacturing or the scale of injection molding, we ensure your PPS-CF parts meet the exact specifications your design requires.
Our fleet of advanced industrial printers: including MJF and high-temp FFF: is calibrated specifically for these "super polymers." We handle the technical complexities so you can focus on the engineering.
Final Verdict: Is PPS-CF Right for You?
If your project requires:
- Exceptional chemical resistance (especially to fuels and solvents).
- High stiffness and dimensional stability.
- Heat resistance up to 220°C.
- Cost savings over PEEK.
...then PPS-CF is likely your best bet. It’s a workhorse material that delivers high-end performance without the high-end headaches.
Ready to see how PPS-CF performs for your specific application? Get an online quote today and let’s get your project moving.
