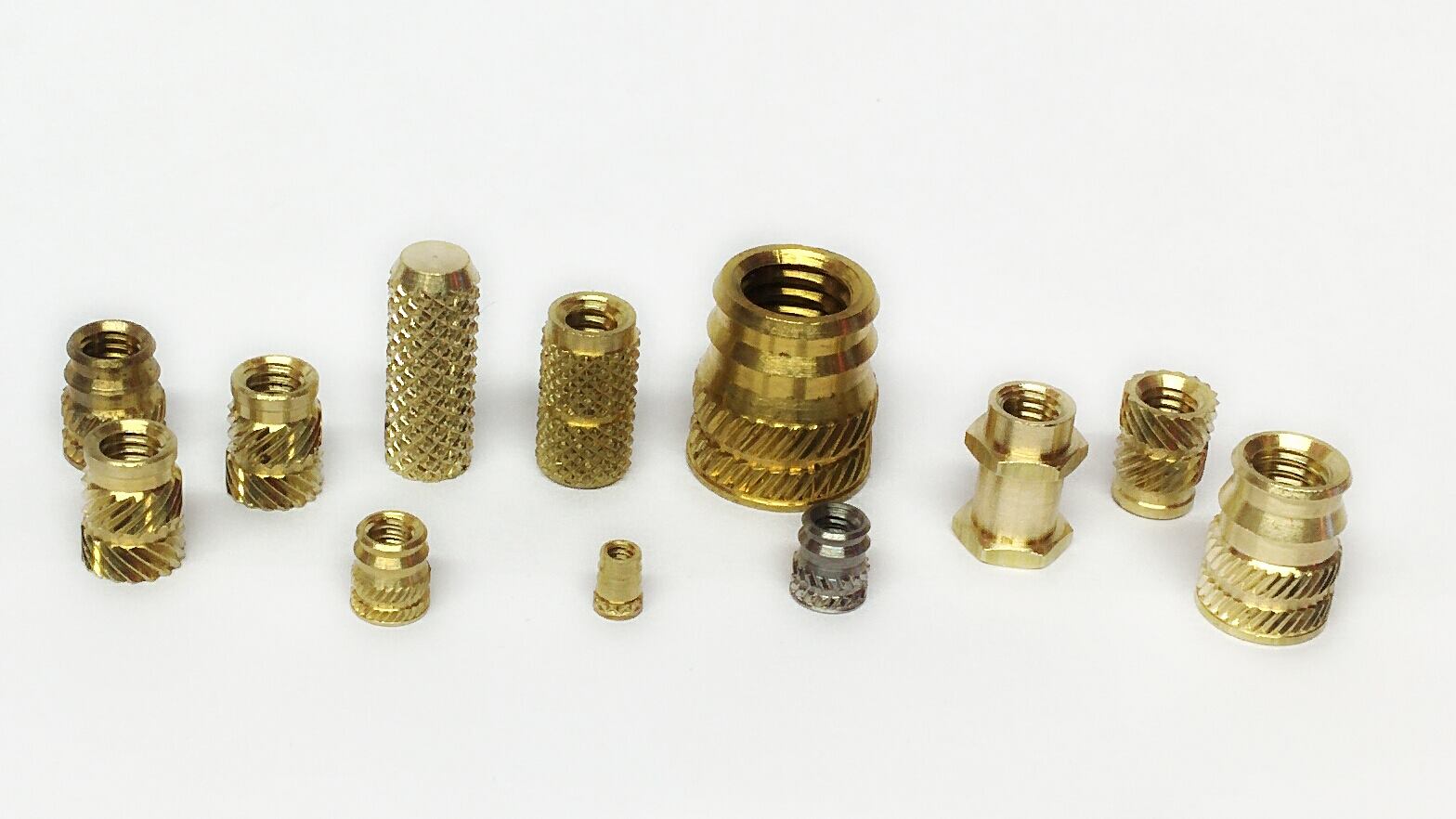

Threaded Inserts

For prototyping and low volume we use Yardley “Trisert” threaded brass inserts. The insert is manually installed into the part with a Yardley “Trisert” hand tool.




Advantages
  • Self-tapping, self-locking
  • Provide stronger, more durable permanent threads in plastics
  • Offer strong resistance to rotation and pull-out
  • Lead on both ends simplifies installation


TRISERT Inserts are internally and externally threaded metal bushings that are installed in plastics and soft metals to provide stronger threads than the base plastic or metal can offer. They tap their own threads as they are driven (turned) into drilled or cored holes. The three, full-length, external flutes provide a balanced, full cutting action. Chips and dust are retained in these flutes and the inside threads stay clean. This is especially important in electronic or electrical work where contamination can cause serious problems.



To make installation easier, TRISERT Inserts have a lead on both ends permitting manual placement by feel and making hopper feed practical for automated production.

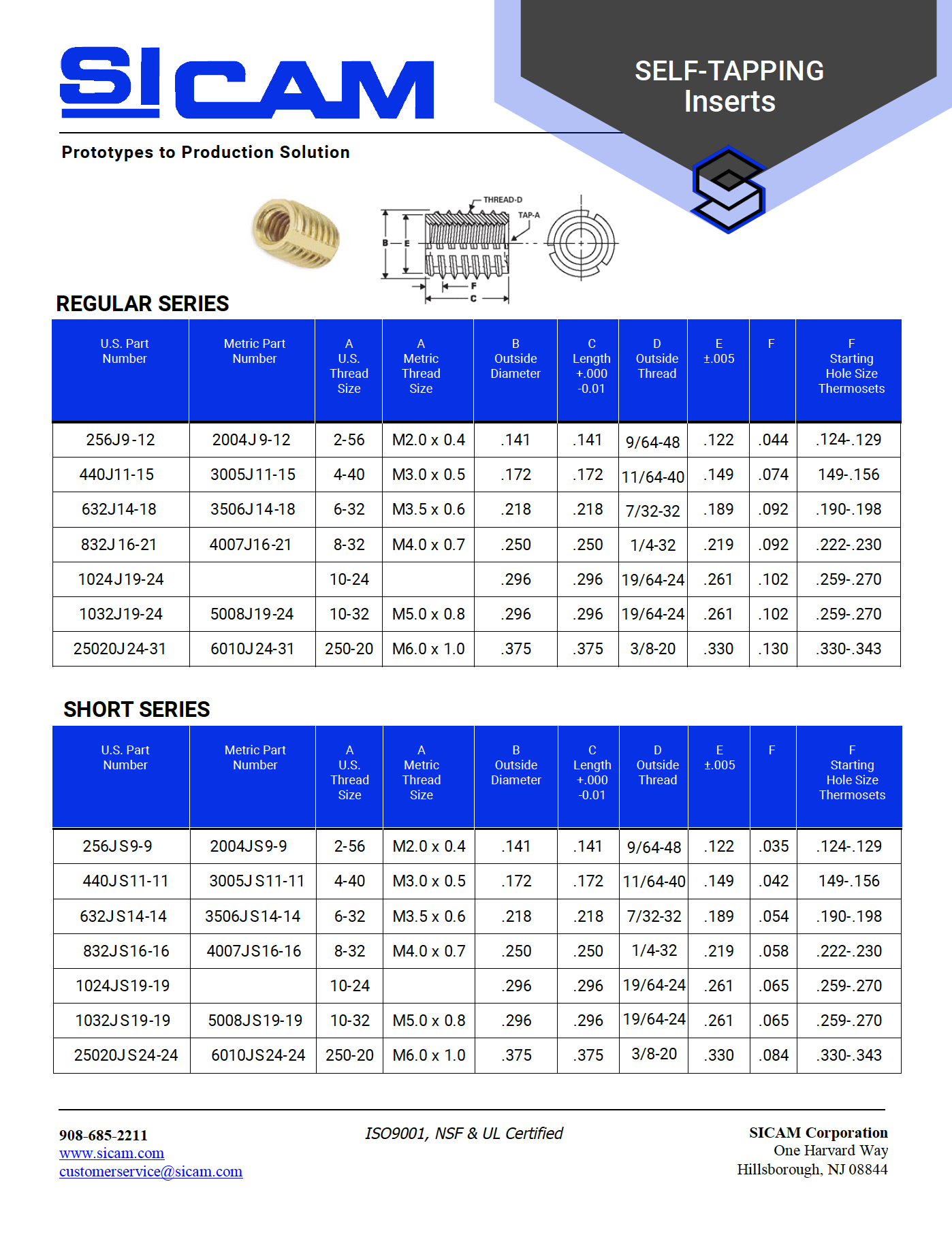

COARSE THREADED SERIES

U.S.

Part Number

Metric Part Number

A

U.S.

Thread Size

A

Metric

Thread Size

B

Outside

Diameter

C

Length

+.000

–.010

D

Outside

Thread

E ±.005

F

Starting

Hole Size

Thermosets

256JC9-12

2004JC9-12

2-56

M2.0 x 0.4

.141

.188

.141-32

.122

.044

.127-.129

440JC11-15

3005JC11-15

4-40

M3.0 x 0.5

.172

.234

.172-24

.149

.056

.152-.156

632JC14-18

3506JC14-18

6-32

M3.5 x 0.6

.218

.281

.218-20

.189

.069

.194-.198

832JC16-21

4007JC16-21

8-32

M4.0 x 0.7

.250

.328

.250-20

.219

.074

.226-.230

1024JC19-24



10-24



.296

.375

.296-18

.261

.083

.264-.270

1032JC19-24

5008JC19-24

10-32

M5.0 x 0.8

.296

.375

.296-18

.261

.083

.264-.270

25020JC24-31

6010JC24-31

250-20

M6.0 x 1.0

.375

.484

.375-16

.330

.102

.336-.343

COARSE THREADED SHORT SERIES

U.S.

Part Number

Metric Part Number

A

U.S.

Thread Size

A

Metric

Thread Size

B

Outside

Diameter

C

Length

+.000

–.010

D

Outside Thread

E ±.005

F

Starting

Hole Size

Thermosets

256JCS9-9

2004JCS9-9

2-56

M2.0 x 0.4

.141

.141

.141-32

.122

.035

.127-.129

440JCS11-11

3005JCS11-11

4-40

M3.0 x 0.5

.172

.172

.172-24

.149

.042

.152-.156

632JCS14-14

3506JCS14-14

6-32

M3.5 x 0.6

.218

.218

.218-20

.189

.054

.194-.198

832JCS16-16

4007JCS16-16

8-32

M4.0 x 0.7

.250

.250

.250-20

.219

.058

.226-.230

1024JCS19-19



10-24



.296

.296

.296-18

.261

.065

.266-.270

1032JCS19-19

5008JCS19-19

10-32

M5.0 x 0.8

.296

.296

.296-18

.261

.065

.266-.270

25020JCS24-24

6010JCS24-24

250-20

M6.0 x 1.0

.375

.375

.375-16

.330

.084

.336-.343
